Manufacturing Equipment & Production Lines

A closer look at the equipment behind Xinyinhai’s plastic and electronic product manufacturing—from molding and decoration to electronics, assembly and packaging.

Explore the production resources supporting toys, gifts and consumer electronic product projects.

Discuss Your Project Explore Equipment

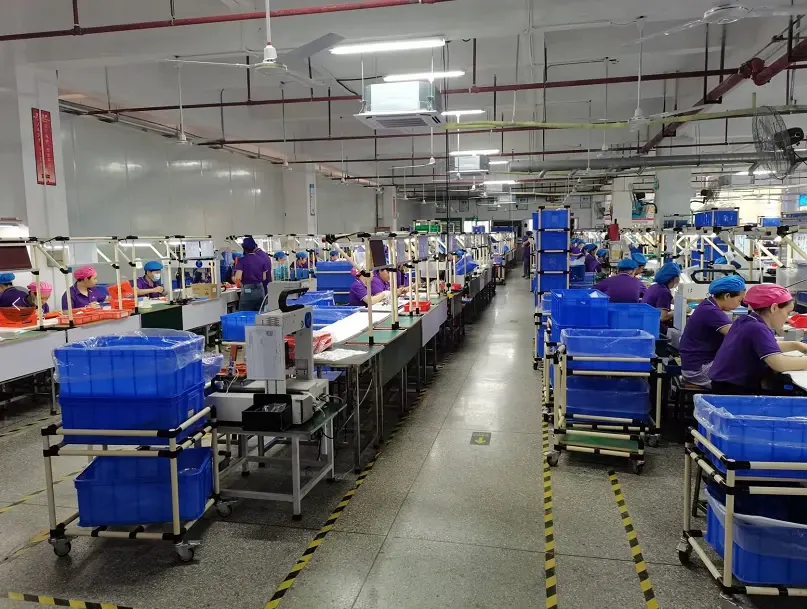

Assembly workstations, operators and a marked central aisle inside Xinyinhai’s workshop — Assembly workstations on Xinyinhai’s production floor.

Equipment at a glance

Xinyinhai’s listed production equipment

Molding Machines: 24 machines
Pad Printing Machines: 12 machines
COB Machines: 5 machines
SMT Lines: 2 lines

Assembly: 6 product models at the same time

Packaging: 6 product models at the same time

Explore parallel production

Molding

24 Molding Machines

Molding equipment supports the plastic housings, covers and structural parts that bring a product together. Xinyinhai’s tooling and injection molding process connects mold preparation and trials with production.

For your product: Review the material, part geometry and mold requirements to establish a suitable production setup.

Explore tooling & injection molding

Equipment reference

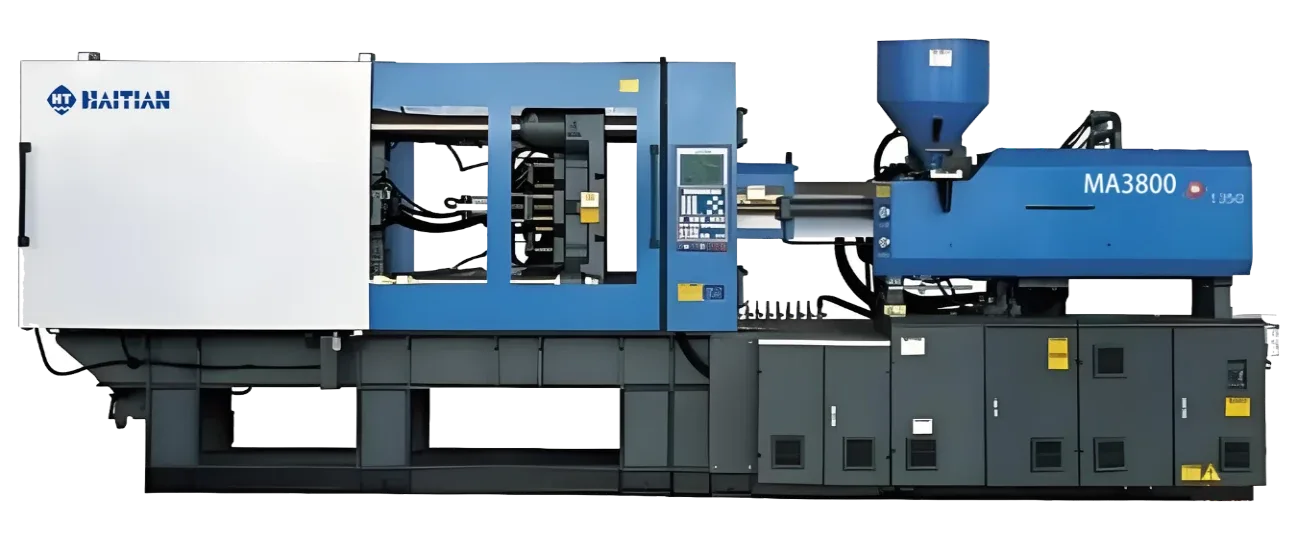

The company profile labels this equipment example 120–380 T. The range does not describe every molding machine.

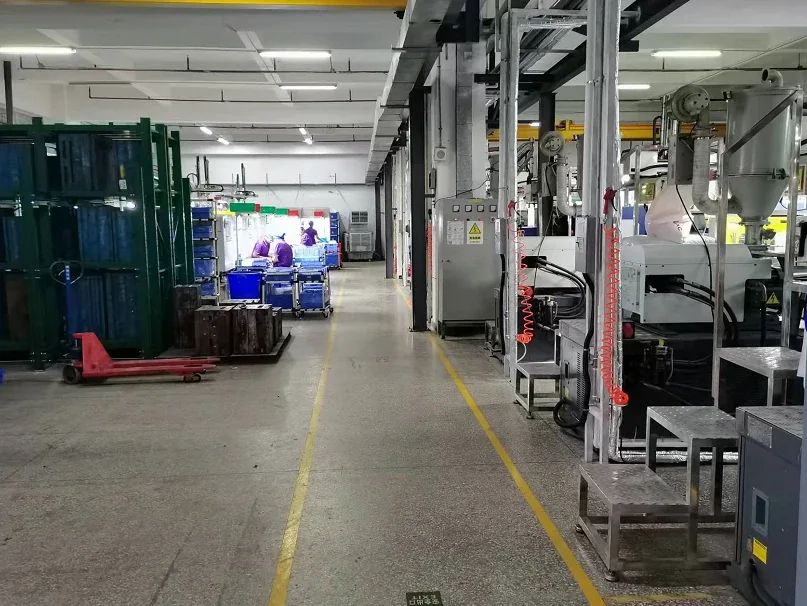

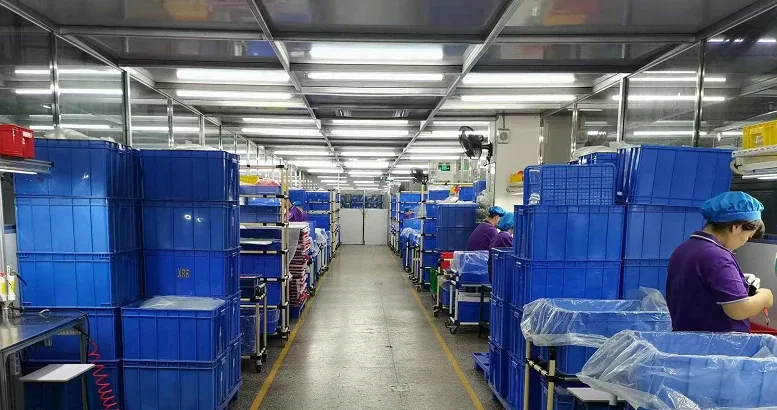

Operators and component bins in the molding production area — Molding production area and component handling.

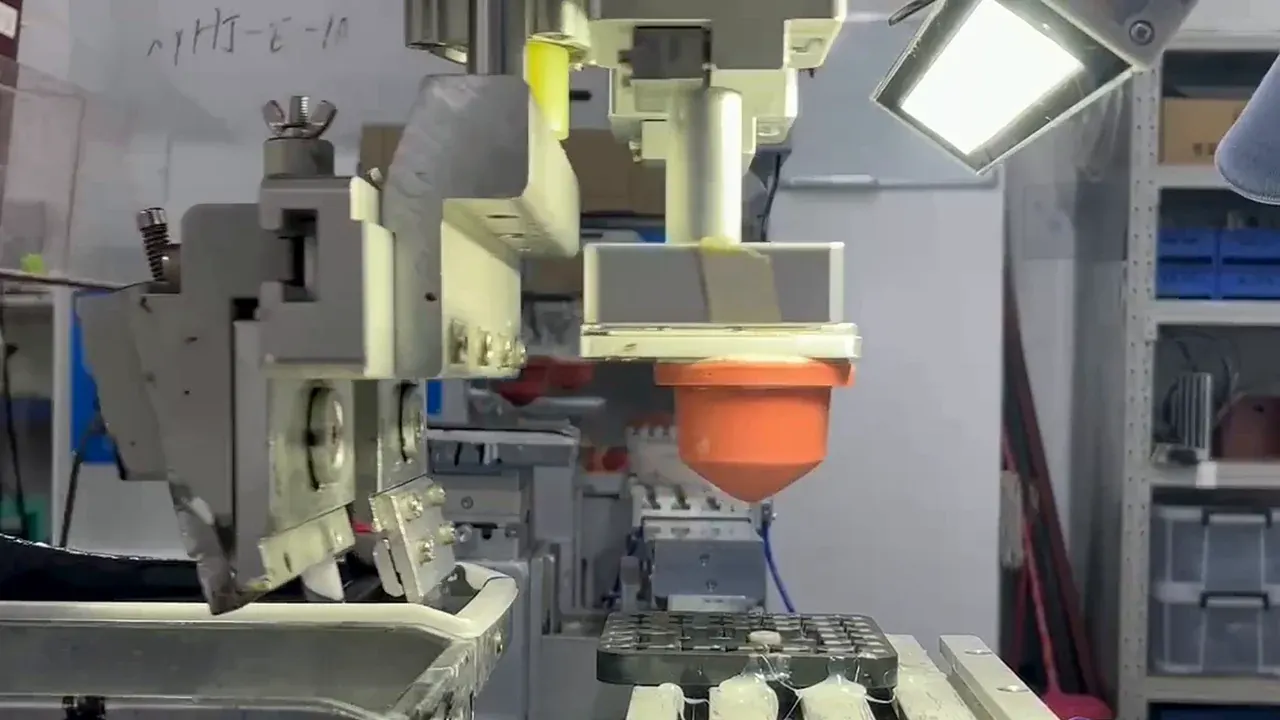

12 Pad Printing Machines

Pad Printing

Pad printing transfers artwork onto a component’s surface. It can support logos, symbols and decorative details on molded parts, depending on the surface and artwork.

For your product: Share the artwork, print position, part material and finish so the decoration method and fixture needs can be reviewed.

Explore printing & product decoration

UV & transfer printing equipment

UV printing and six-color transfer printing complement the pad printing setup. The part material, shape, finish and artwork guide the choice of method.

UV printing machine and its working bed — UV printing equipment.

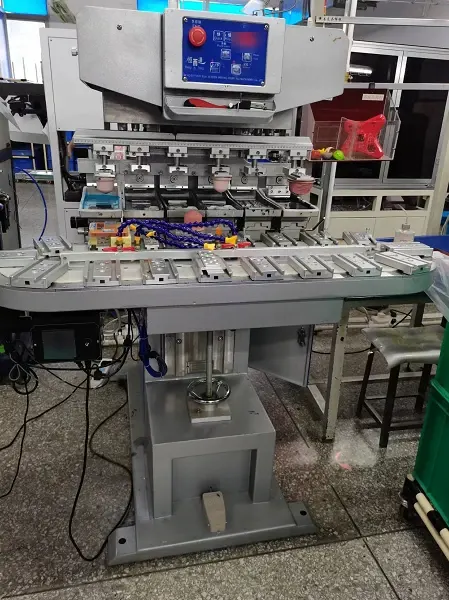

Six-color transfer printing equipment with work fixtures — Six-color transfer printing equipment.

Decoration workshop areas

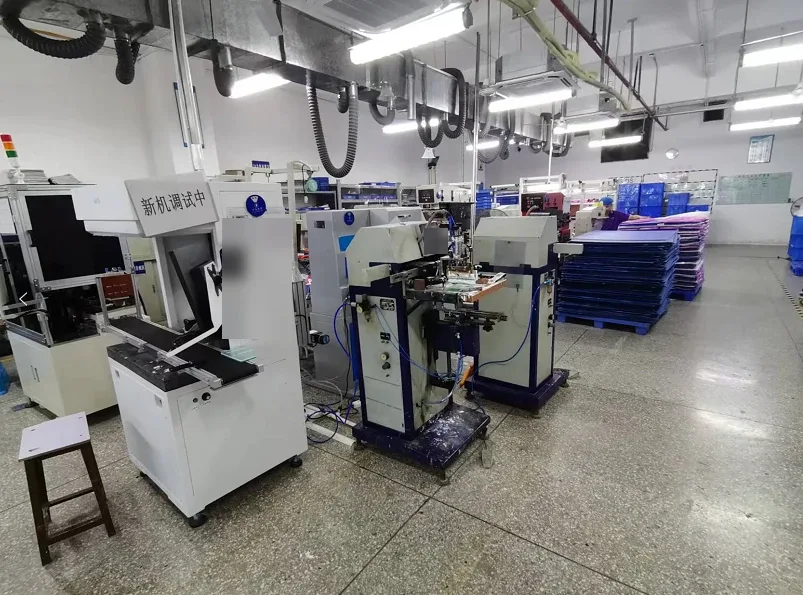

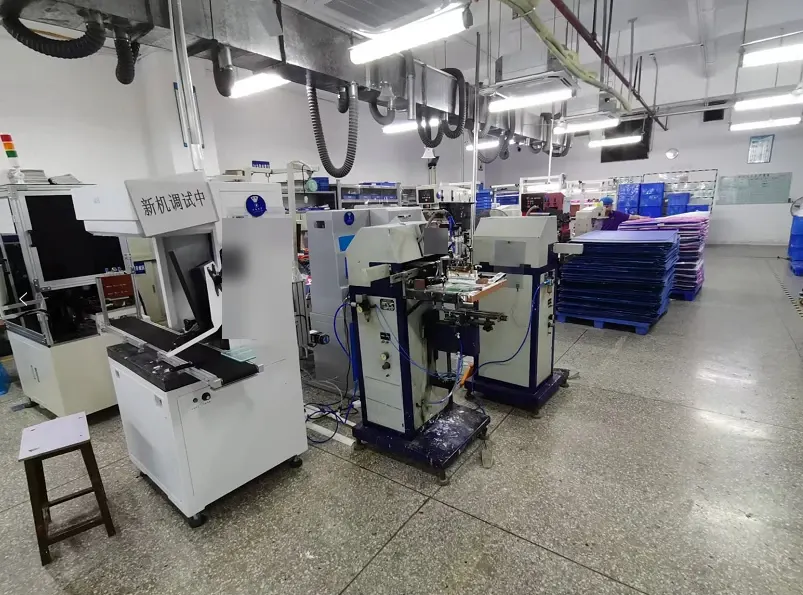

Equipment and material trays along the printing and ultrasonic workshop aisle — Printing and ultrasonic work area: equipment aisle.

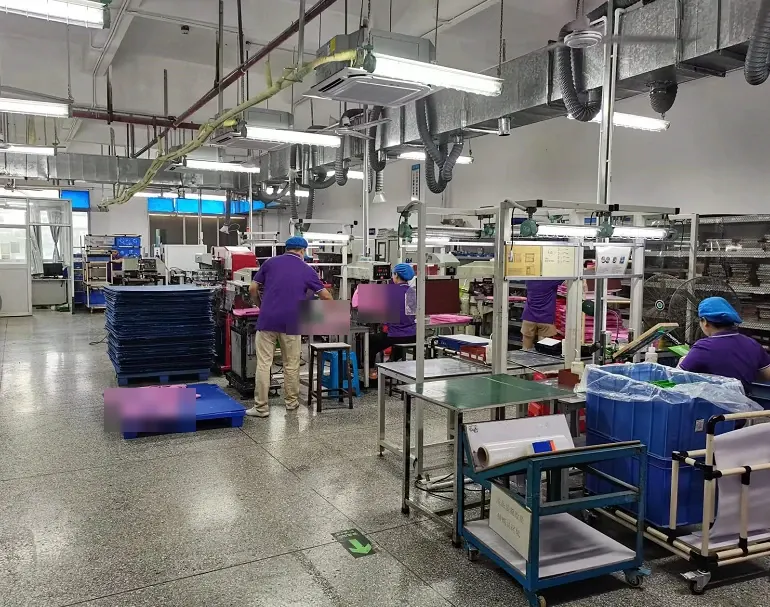

Operators and workstations in the printing and ultrasonic work area — Printing and ultrasonic work area: operator workstations.

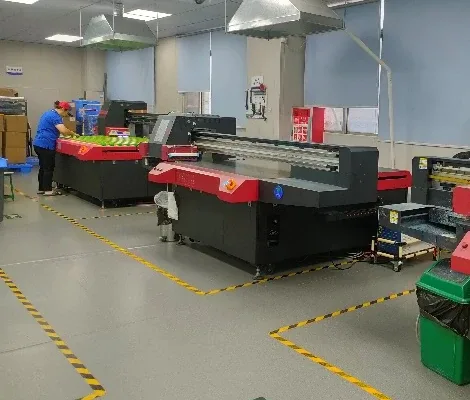

UV printing equipment in a marked workshop area — UV printing equipment in the decoration workshop.

Electronics: SMT & COB

SMT lines: 2
COB machines: 5

SMT lines support surface-mount component assembly. Die bonding and wire bonding equipment support chip-on-board work, with the production route reviewed against the circuit design.

Explore electronics & SMT

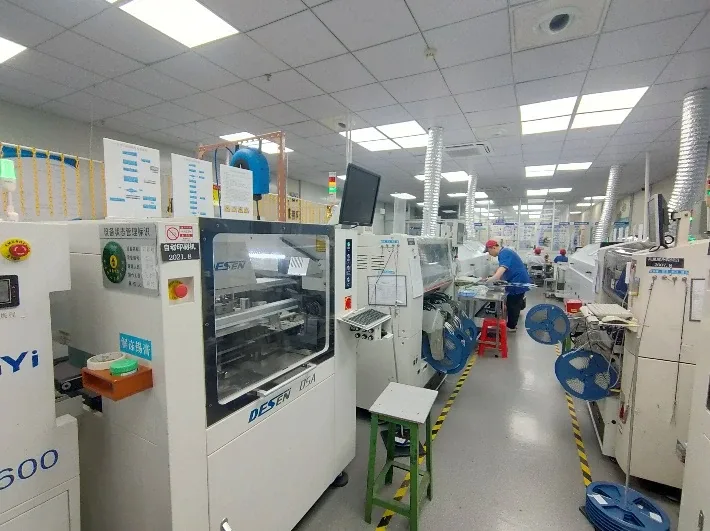

Surface-mount assembly equipment and component reels along the SMT workshop aisle — SMT equipment and component feeding in the electronics workshop.

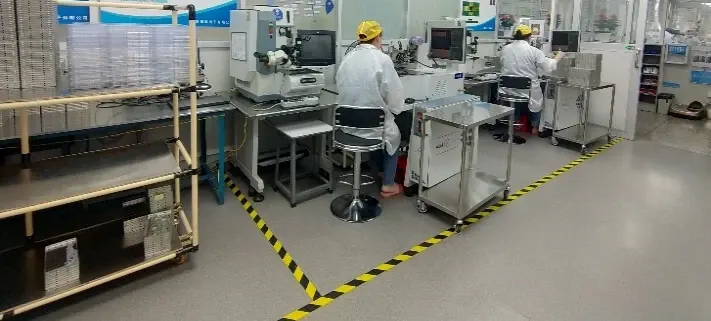

Operators at wire bonding equipment in a dedicated electronics work area — Wire bonding workstations for chip-on-board assembly.

Placement, inspection, die attach and wire interconnection each have a different role. Equipment selection follows the PCB design and product requirements.

Surface-mount placement & inspection

Component feeding and placement are followed by the applicable inspection checks. AOI is automated optical inspection of PCB assemblies.

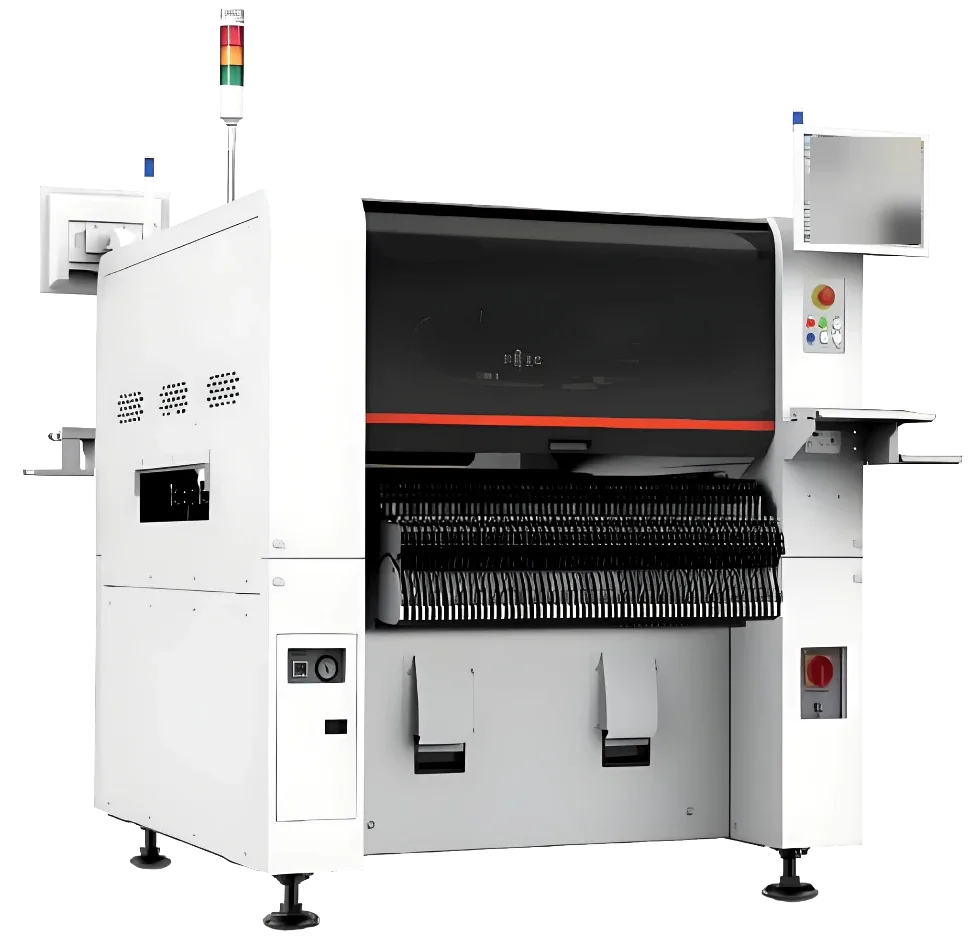

Equipment reference

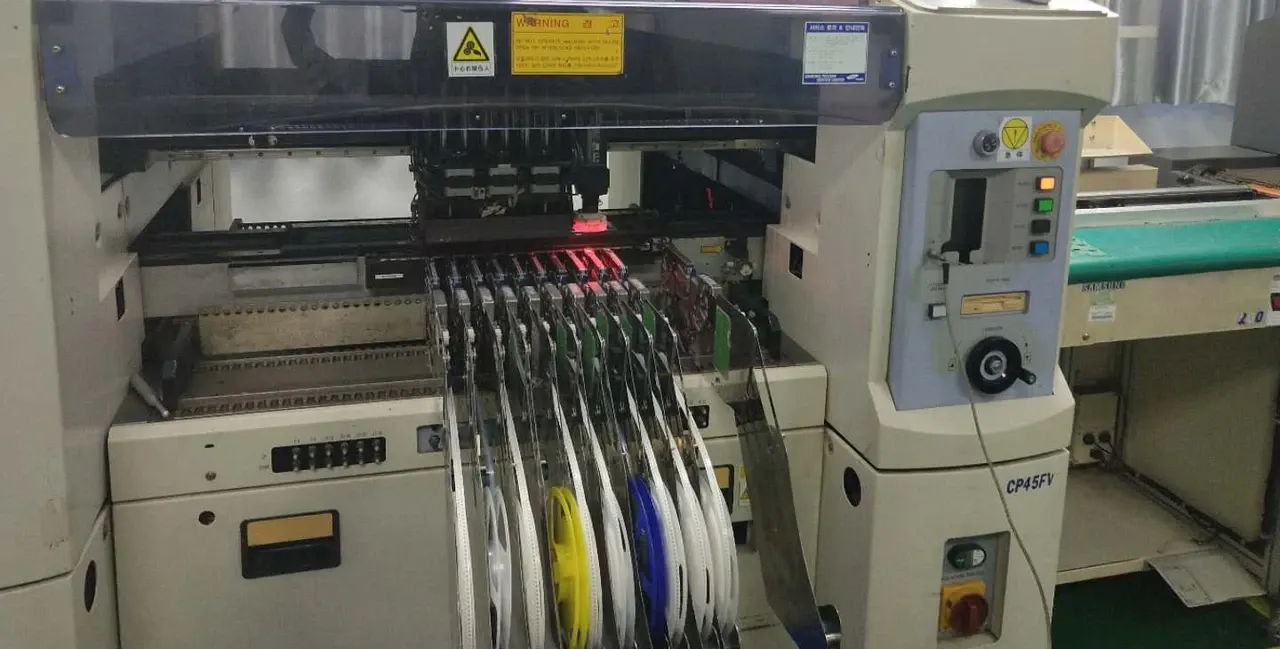

SMT placement equipment with component feeders — SMT placement equipment on the production floor.

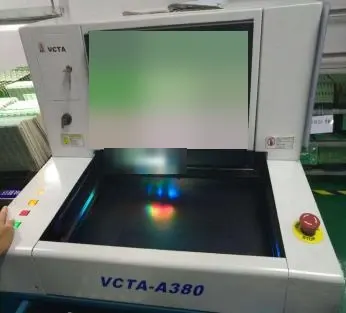

Automated optical inspection equipment for PCB assemblies — AOI PCB inspection equipment.

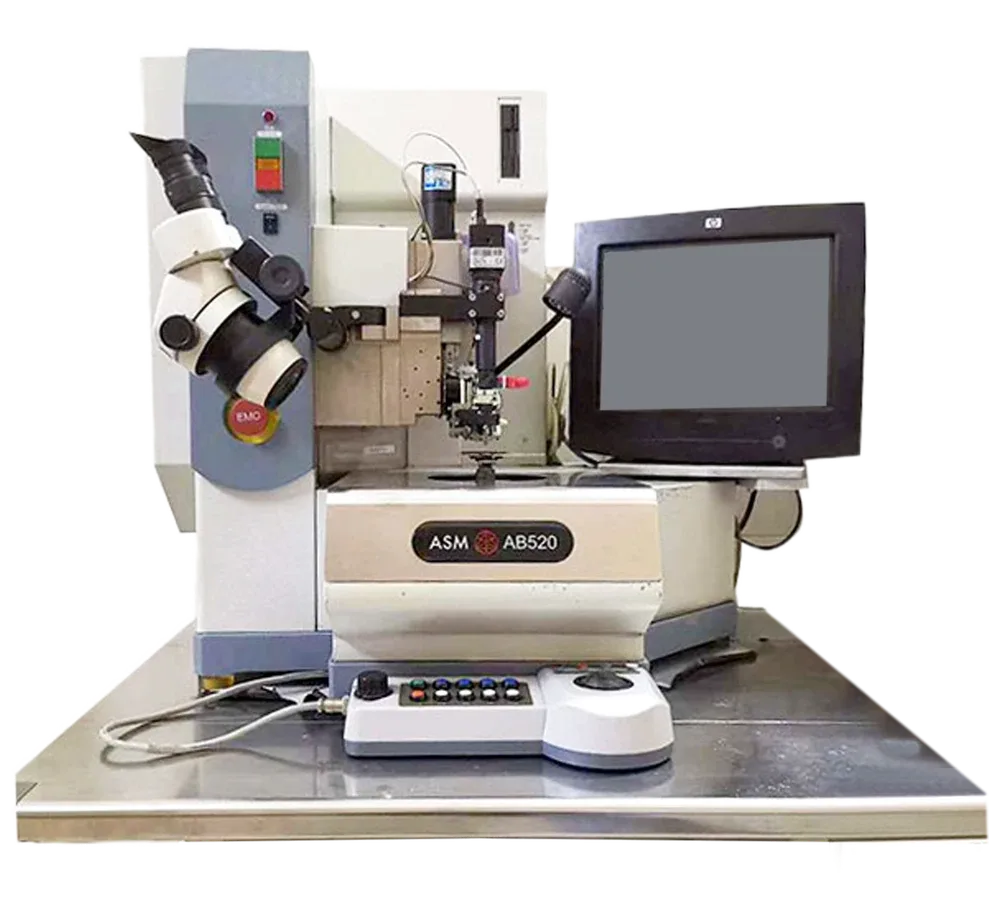

Die attach & wire bonding

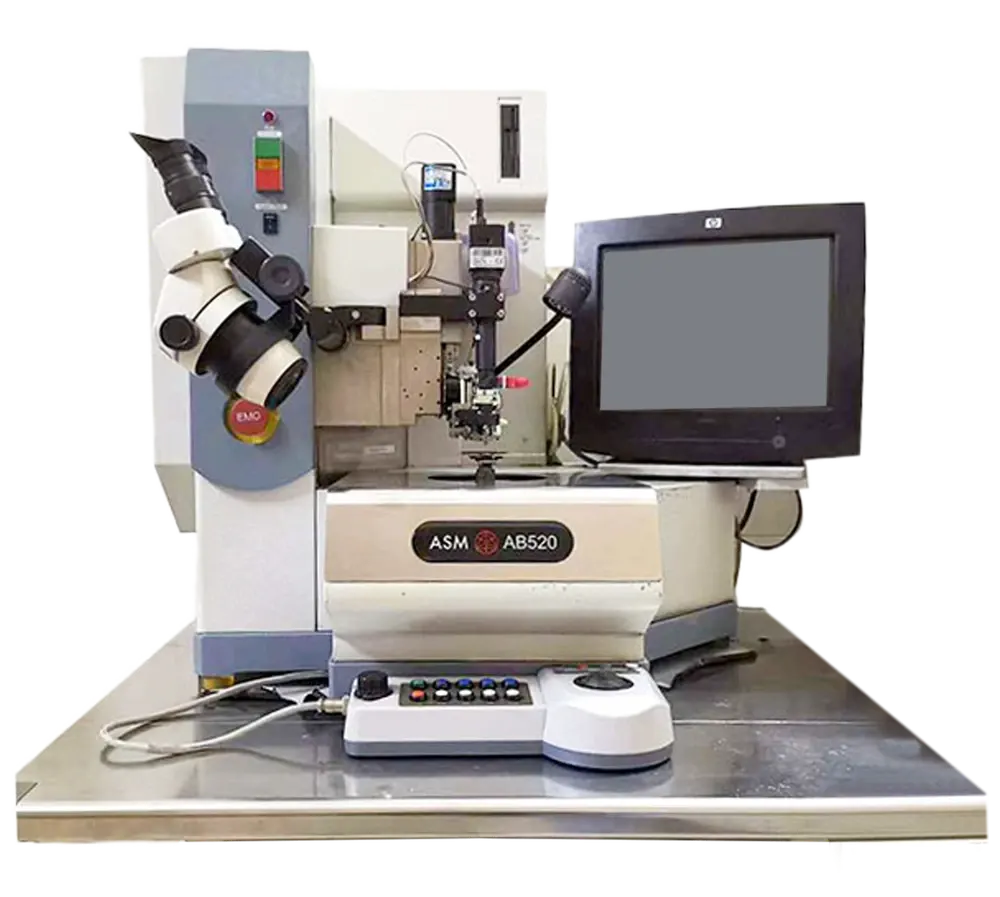

Die bonding positions the IC; wire bonding forms the electrical interconnections for the applicable COB assembly.

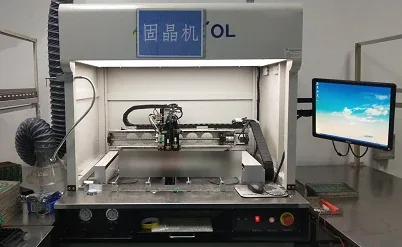

IC die bonding equipment showing the placement station — Automatic IC die bonding equipment.

Equipment reference

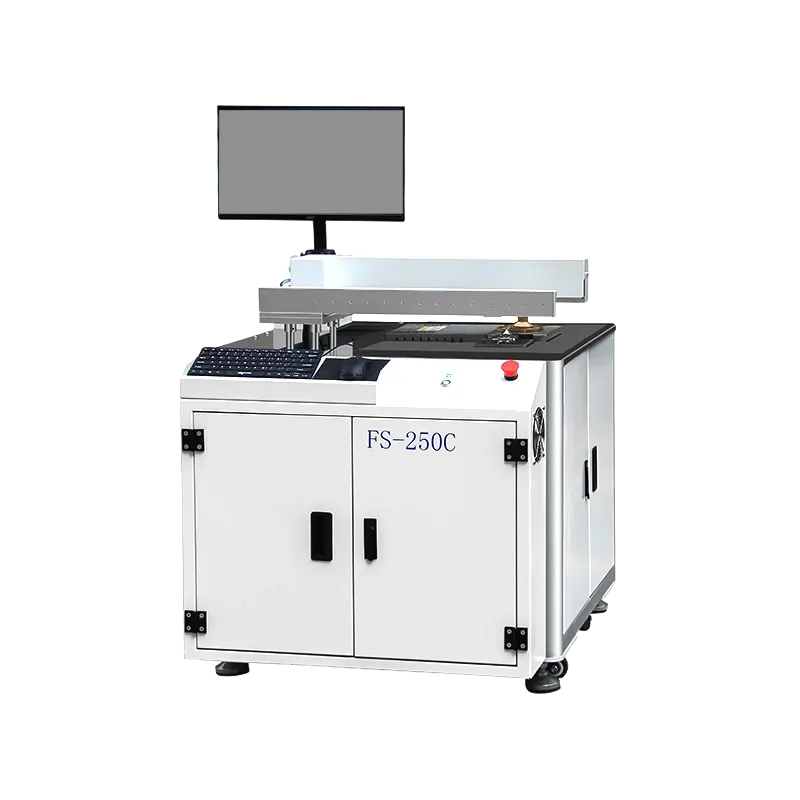

Selective soldering & soldering workstations

Selective wave soldering equipment and downstream soldering workstations support the connections and assembly operations specified for the product.

Equipment reference

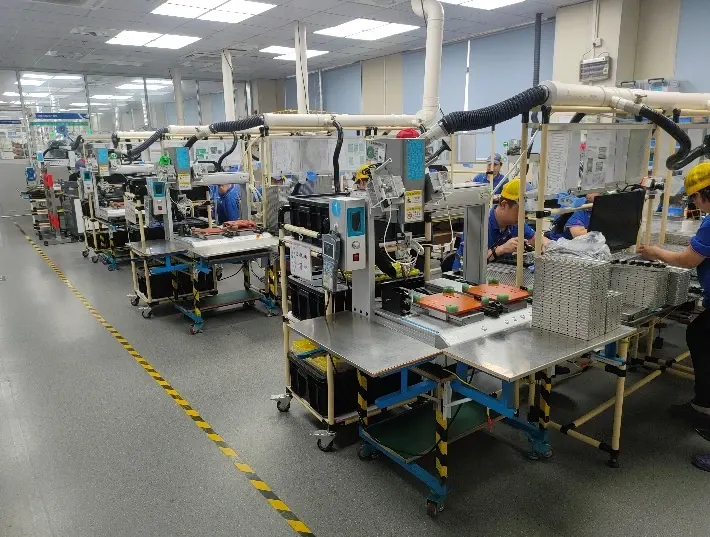

Soldering workstations arranged along an electronics workshop aisle — Soldering workstations on the production floor.

Share the PCB design, component requirements and intended testing to review the electronics setup for your product.

Assembly & Packaging

Workstations bring plastic parts and electronics into finished products, followed by packaging to the agreed specification. Both stages support multiple product models at the same time.

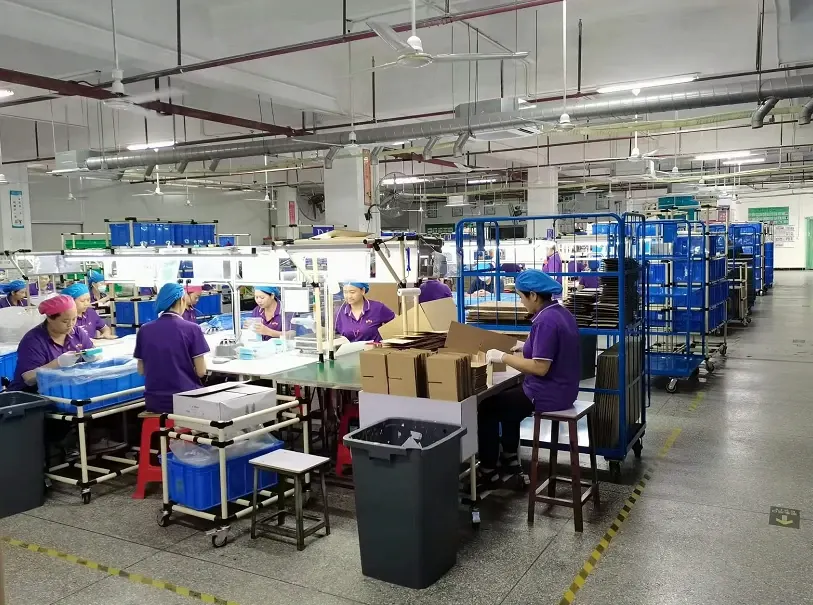

Operators, work tables and cartons in the packaging area — Packaging workstations and carton handling on the production floor.

Assembly: 6 product models at the same timeComponent fitting and product assembly.
Packaging: 6 product models at the same timeProduct packing and presentation.

Explore assembly & packaging

Soldering, fastening & joining

Dedicated equipment supports soldered connections, screw fastening and ultrasonic joining, with fixtures and settings reviewed for the product.

Automated soldering station showing the soldering head and work fixture — Automated soldering equipment.

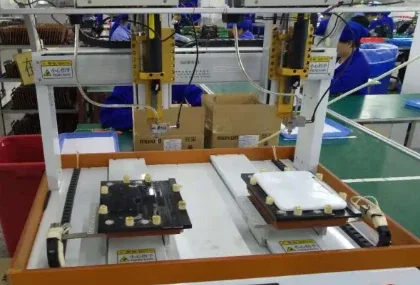

Automatic screwdriving equipment with paired component fixtures — Automatic screwdriving equipment.

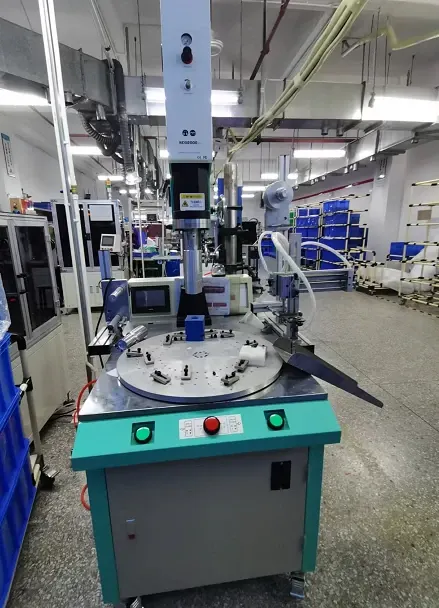

Ultrasonic welding machine with a rotary work fixture — Ultrasonic welding equipment.

Label application & gasket placement

Application equipment supports labels and battery-cover gaskets. The component, placement position and fixture are defined for each product.

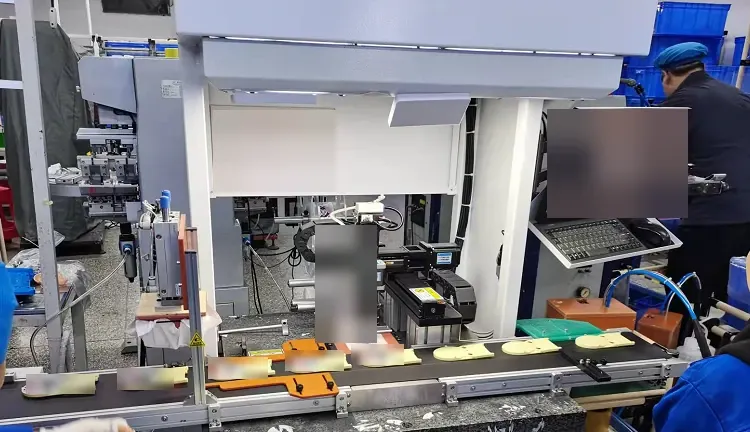

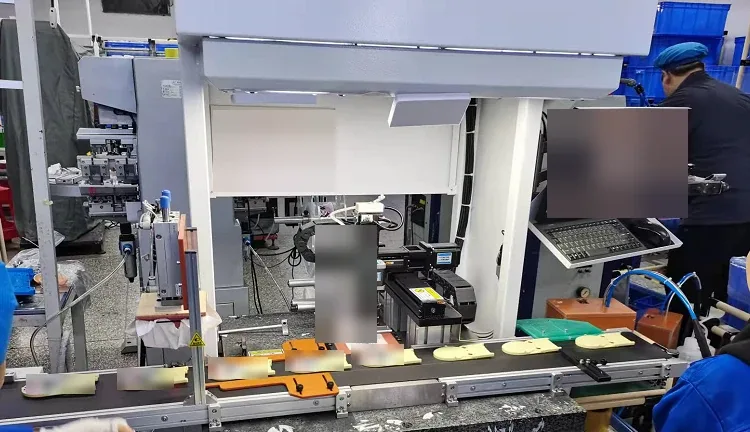

Automatic label application equipment on an assembly workstation — Automatic label application equipment.

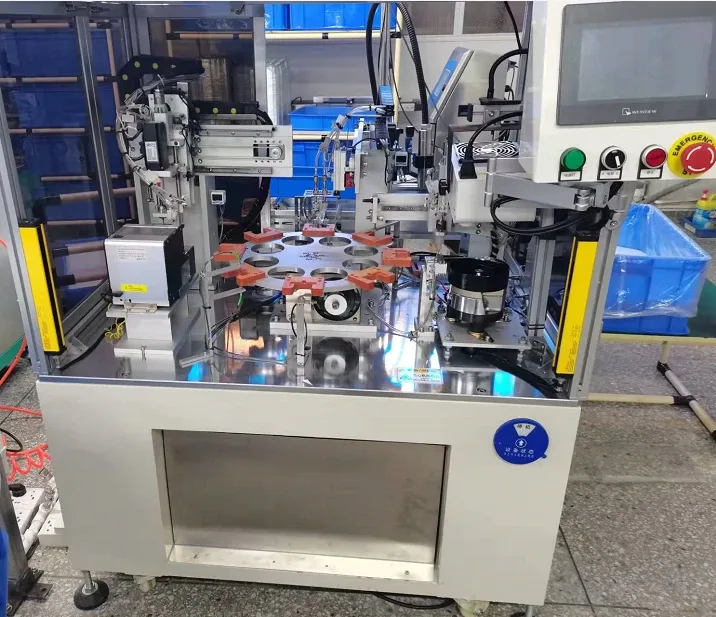

Battery-cover gasket placement equipment with a rotary fixture — Automatic battery-cover gasket placement equipment.

Selected photographs conceal confidential screen and product details. Equipment-reference images identify the pictured examples.

Lubricant being applied to a mold guide post during maintenance

Equipment care & workplace practice

Factory photographs and working instructions add context to the equipment on the floor.

Mold-care instructions cover cleaning, lubrication and checks before the next installation.

Review mold care

Assembly training references cover fastening tools and torque checking, with settings defined for the product.

Review assembly practices

Plan production around your product

Tell us your product type, main manufacturing processes and expected order quantity. Our team can review the production route and equipment fit with you.

Discuss Your Project

Specific capacity and lead time depend on the product requirements and production schedule. Current equipment availability is confirmed during project review.
